Grain Size of Titanium
(Ti6Al4V) Alpha Phase (EM)
Grain size analysis is crucial for optimizing mechanical properties, ensuring quality, and predicting performance. Grain size affects strength, hardness, ductility, and corrosion resistance, playing a key role in failure analysis, weld integrity, and industry compliance (e.g., ASTM E112). Controlling grain structure improves wear resistance, prevents defects, and enhances reliability in aerospace, automotive, and structural applications.
The Image-Pro Grain Size Protocol streamlines measurement via boundary detection or direct grain counting using AI-driven segmentation. Its structured workflow ensures accuracy, reproducibility, and ease of use, enabling efficient large-scale analysis—even for users with little to no image analysis experience.
Techniques: Electron Microscopy
How it works
Select Image
Select your grains phase image and check that the correct calibrations are applied.
Set Diameter

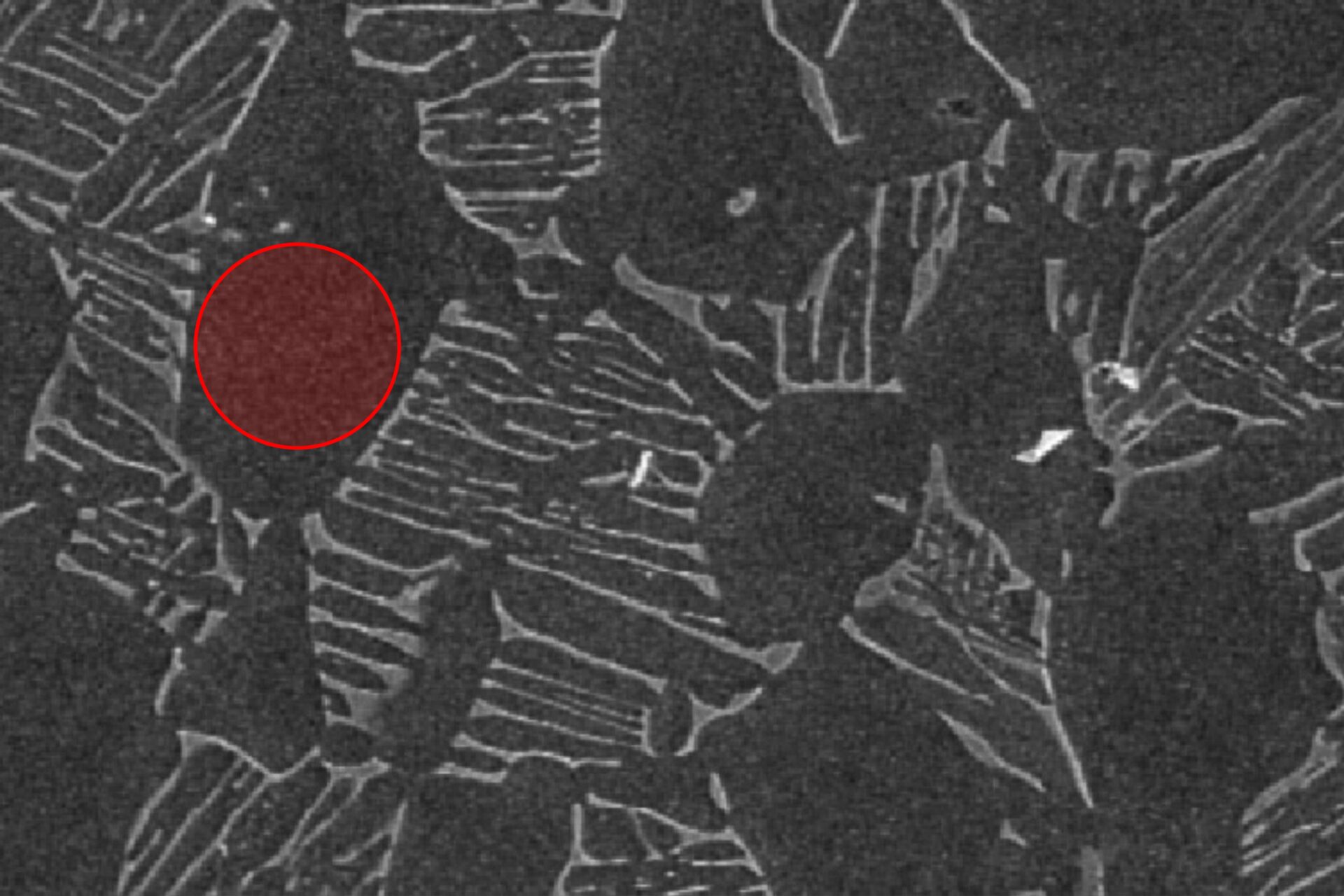

Set an approximate grain diameter (direct detection) or configure a custom algorithm to detect grain boundaries.
Measure

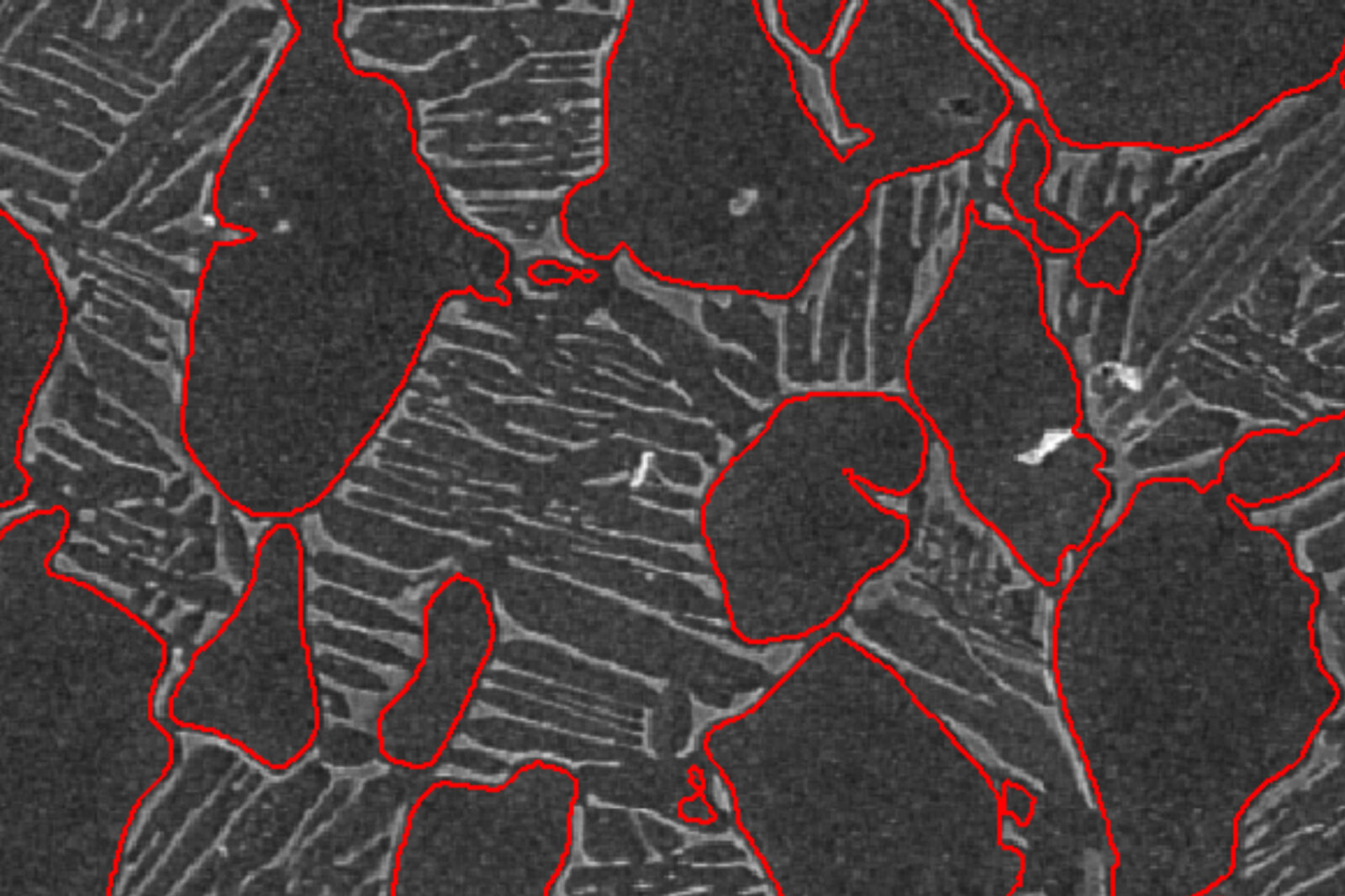

Count and measure individual grains.
Quantitative results

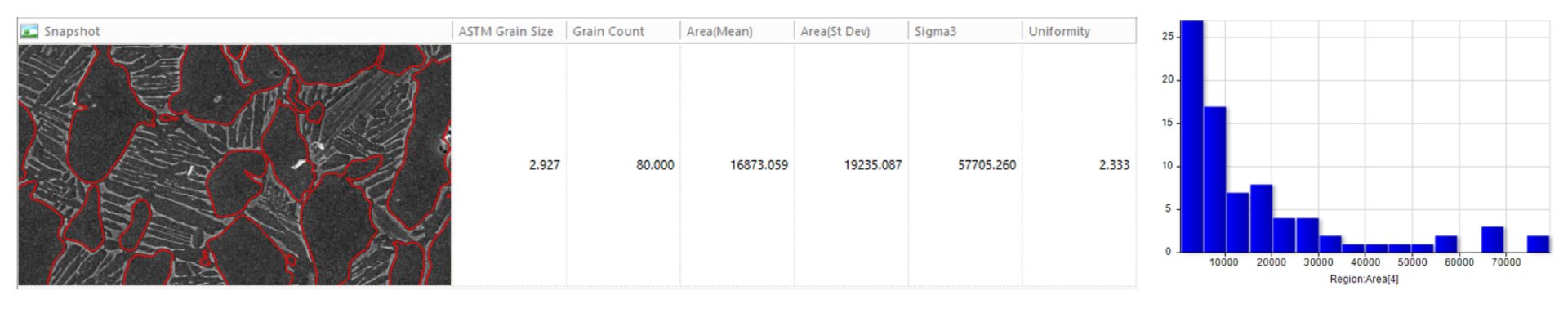

Automatically generate tables, heat maps, charts and even complex bespoke reports.
Measurement parameters supported
- • ASTM grain size
- • Grain count
- • Grain area (mean)
- • Grain area - standard deviation
- • Sigma3
- • Uniformity
- • Custom user-defined measurements
Solution requirements
Required Modules
Base
2D Automated Analysis
Materials EM Protocols Collection
Grain (EM) Protocol
AI Deep Learning
Materials Models
Grains: Titanium (Ti6Al4V) Alpha Phase Model
Recommended Package
