Grain Size
(ASTM E112
Intercept Method)

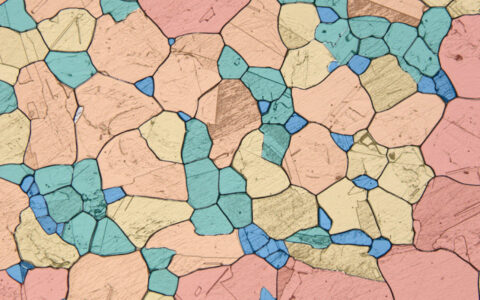

Determine grain size and utilize various standards including ASTM E112, GB/T 6394, IS 4748, ISO 643, and JIS G 0552. Use the Intercept Method of placing diagonal, circle, horizontal, and vertical lines as patterns on the image, using the Line Profile to determine where grain boundaries intersect, or use the Area method, using Count/Size tool, to classify and determine grain size.
Techniques: Brightfield, Electron Microscopy
Solution Requirements
Required Modules
Base
2D Automated Analysis
Asia Imaging (3rd party App)
Grain Size (ASTM E112 Intercept Method) App
Recommended Package
